Multifunction EDGE router – fiber up to 10GE - Dual power supply

Imola 0286-RPS

IMOLA 0286-RPS is a next-generation multifunction EDGE router designed to deliver multi-gigabit fiber connectivity up to 10 Gigabit Ethernet, ensuring high performance, continuous availability, and scalability for complex network environments.

Thanks to its carrier-grade hardware and rack-mountable form factor, it is ideally suited for professional and industrial applications.

The IMOLA 0286-RPS features a dual power supply. A DC/DC-powered variant is also available.

The product integrates advanced routing, switching, security, and traffic management capabilities, supporting high-capacity LAN and WAN networks.

With Layer 7 (L7) traffic classification, machine learning-based Network Anomaly Detection algorithms, and edge computing capabilities, it represents an ideal solution for data centers, medium and large offices, telecommunications networks, and industrial environments

Key factors

Certified

Validated for inclusion in business offering profiles and use within the networks of major telecom operators.

Edge Computing

Supports third-party applications that need to operate at the EDGE of the network.

Future Proof

Protects investments with support for future technologies like 5G and/or Fiber.

ISP And Telco Ready

Designed to meet the requirements of service providers, telecom operators, carriers, and system integrators.

Robust

Designed to be durable and operate long-term, even in industrial and challenging environments.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

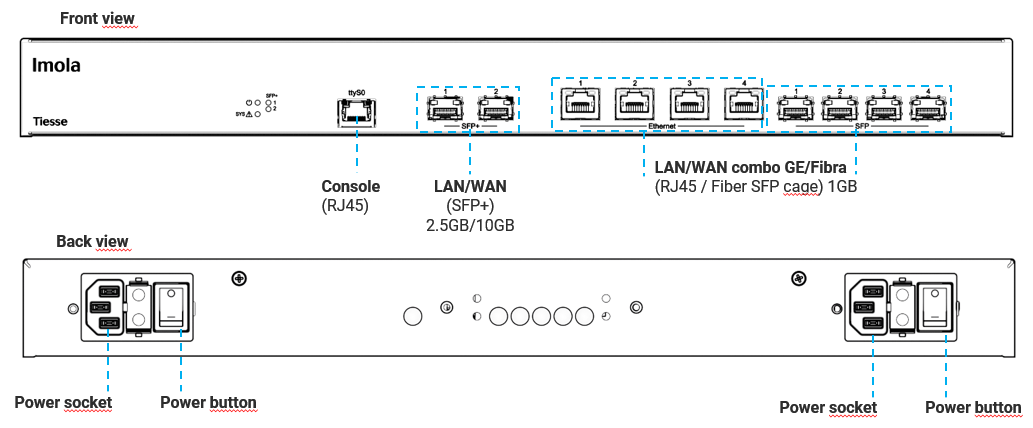

LAN/WAN	4	10/100/1000 Mbps ports (RJ45 connector) combo with 4 SFP 1000 Mbps ports
LAN/WAN	2	1GE/2.5GE/10GE ports, via SFP cages (transceiver modules not included)
Console	1	RJ45 console port (label ttyS0)

NETWORKING	IPv4 / IPv6 Dual Stack advanced forwarding, filtering, and dual-stack policies VXLAN (RFC 7348): L2 over IP/UDP with per-tenant VNI encapsulation SRv6 Native SID Support: Implements End, End.X, End.DT6, End.B6 behaviors Integrated with BGP SR Policy for flexible traffic engineering High Availability: ECMP, VRRP, BFD, fast convergence via EVPN multihoming
LAYER 2	IEEE 802.1Q VLANs: iTagged VLAN support with configurable trunks and access ports Ethernet Bridging: hardware/software bridge domains with MAC learning and filtering Layer 2 protocol Tunneling (L2TP) 802.1Q-in-802.1Q EVPN (RFC 7432): L2/L3 VPN overlay over IP/MPLS MAC/IP route advertisement (Type-2), IP Prefix routes (Type-5) Ethernet Segment Identifier (ESI) for multihoming and redundancy Spanning Tree Protocols (optional): support for RSTP/MSTP VXLAN + EVPN Integration: EVPN as the control plane for VXLAN overlays Seamless tenant segmentation and MAC mobility
ROUTING & MULTICAST	BGP – Border Gateway Protocol: Full IPv4/IPv6 support with route-maps, prefix-lists, communities Route Reflector, Confederation, Add-Path, Route Refresh BGP-LU for MPLS/SRv6 integration BGP EVPN and SR-TE extensions RPKI for route origin validation OSPF / IS-IS: Dynamic IGP support for underlay routing SRv6 SID advertisement via IGP extensions RIP, RIPNG Static Routing with route distance, and route tagging Route Redistribution Policy Based Routing Full VRF Support VRR (Virtual Routing Redundnacy Protocol) Multicast routing with PIMv2 sparse-mode and PIMv2 dense-mode, MSDP IGMP v1-v2-v3, IGMP snooping, IGMP Proxy MPLS Support Native MPLS Forwarding ‐Support for LDP for label Distribution Multihoming and Failover: BGP multipath, BFD fast detection, graceful restart
QoS	Traffic classification based on source IP, destination IP, protocols (UDP, ICMP,TCP, etc.) and ports, and their combinations, on application recognition, on IP Precedence and DSCP DiffServ Remarking of IP Precedence, DSCP and CoS Shaping with guaranteed bandwidth allocation and redistribution of excess bandwidth Committed Access Rate and Multicast rate limit Traffic prioritisation mechanisms, definition of an arbitrary number of priority classes IEEE 802.3ad link aggregation
VPN and TUNNELLING	IPSec VPN (site-to-site and remote-access): Support of IKEv1/IKEv2 Policy-based and route-based IPSec GRE / GRE over IPsec: Simple L3 tunneling or secure encapsulation. NHRP (Next Hop Resolution Protocol) for DMVPN Architecture L2TP / L2TPv3: Layer 2 VPN over IP Optional pseudowire emulation with static or dynamic control OpenVPN Support client and server
SECURITY	Access Control Lists (ACLs): IPv4/IPv6 L2-L4 filtering with permit/deny actions Applied on ingress/egress per interface or globally Stateful Firewall: Connection tracking with session-based filtering Inspection of TCP/UDP/ICMP flows with dynamic port handling Protection against SYN floods and malformed packets NAT / PAT Support: Source NAT, Destination NAT, Port Address Translation Useful for IPv4-to-IPv6 interworking and traffic isolation 802.1x Access port authentication using EAP with RADIUS backend
SERVICES	DHCP client, DHCP server with anti-spoofing functions, DHCP relay Intelligent DNS Proxy, local and remote Traceroute NTP Client and Server support DynDNS
MANAGEMENT and CONFIGURATION	SNMPv2, SNMPv3 Netflow Telnet server with multiple simultaneous sessions SSH server with multiple simultaneous sessions (SSHv2) Fault management Syslog /Trap Radius Support, TACACS+ Netconf and YANG Models Tracking for backup management, scheduled commands and events Software update via TFTP, FTP, sFTP, HTTP, HTTPS, SCP Configuration via Command Line Interface (CLI), Text/Menu oriented and Telnet TNA (Tiesse Network Architecture) suite for self-provisioning and automated remote management Management of an unlimited number of configurations
