Imola LX 0296-20

Indoor router – Fiber – xDSL – Wi-Fi 6 - Voice

Imola LX 0296-20 is a state-of-the-art all-in-one router capable of speeds up to 10 Gbit/s.

With AX3600 Wi-Fi technology, it also provides high performance on wireless LANs.

Designed to take full advantage of the potential of Gigabit networks, it is the ideal solution for data-intensive applications and speed requirements.

VoIP support enables up to two analog calls, making it perfect for businesses, commercial establishments and public administrations that require reliability, operational efficiency and advanced management of data and voice traffic.

Key factors

All-In-One

Adaptable to any technology, including FTTC, FTTH, FWA, 4G/5G, in a single device for reliable, versatile, and scalable connectivity.

Always-On

Stable connections, wherever they are, with multiple links, transparent backup, and quality of service for uninterrupted business.

ISP And Telco Ready

Designed to meet the requirements of service providers, telecom operators, carriers, and system integrators.

Preconfigured

Factory pre-configured and ready to use, reducing installation time, errors, and enabling immediate deployment.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

ZTP

Zero Touch Provisioning facilitates remote management and agile configuration of the installed base.

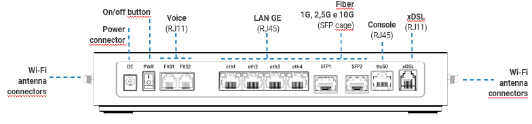

Imola 6.5 LX 0296-20 - interfaces scheme

LAN/WAN	GE	4	10/100/1000 Mbps ports
LAN/WAN	Fiber	2	1G / 2.5 / 10 Gbit ports, via SFP/SFP+ cages (transceiver module not included)
Wi-Fi	RF	1	IEEE 802.11ax IEEE802.11ac IEEE802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11a
	Frequency bands		2.4 GHz and 5 GHz simultaneous
	MIMO		4 x 4
	Antennas		External removable antenna, SMA male connectors
ADSL2/2+ VDSL2 eVDSL	ADSL2/2+	1	Downstream data rates up to 24 Mbps - Upstream data rates up to 3.5 Mbps Compliant with Standard G.992.1 annex A,B,C&I, G.992.2-g.Lite, G.992 .3 annex A, B, I, J, M, G.992 .4-g.Lite.bis, G.992.5 annex A, B, C, I, J, M, ANSI T1.413 issue2, ETSI TS 388 ADSL-over-ISDN, ITU T-I361, ITU T-I.363.5, ITU T-I.432, ITU T-I610, ITU T-I731
	VDSL2		Support for all VDSL2 profiles: 8 MHz up to 30 MHz ITU-T G993.2 Compliant with G.Vector standard (ITU-T G.993.5) Compliant with ITU-T G.998.4 G.INP standard Compatible with ADSL2 (backward compatibility)
	eVDSL		35 MHz ITU-T G993.2 Annex Q profile support (35b or Vplus profiles) with aggregate rates up to 400Mbpss
VOICE	FXS	2	FXS ports

Note: the following list is purely indicative, active features depend on version and software update (NOS).

Networking

IPv4 / IPv6 Dual Stack advanced forwarding, filtering, and dual-stack policies
VXLAN (RFC 7348): L2 over IP/UDP with per-tenant VNI encapsulation
SRv6 Native SID Support:
- Implements End, End.X, End.DT6, End.B6 behaviors
- Integrated with BGP SR Policy for flexible traffic engineering
High Availability: ECMP, VRRP, BFD, fast convergence via EVPN multihoming

Layer 2 features

IEEE 802.1Q VLANs: iTagged VLAN support with configurable trunks and access ports
Ethernet Bridging: hardware/software bridge domains with MAC learning and filtering
Layer 2 protocol Tunneling (L2TP)
802.1Q-in-802.1Q
EVPN (RFC 7432):
- L2/L3 VPN overlay over IP/MPLS
- MAC/IP route advertisement (Type-2), IP Prefix routes (Type-5)
- Ethernet Segment Identifier (ESI) for multihoming and redundancy
Spanning Tree Protocols (optional): support for RSTP/MSTP
VXLAN + EVPN Integration:
- EVPN as the control plane for VXLAN overlays
- Seamless tenant segmentation and MAC mobility

Routing & multicast

BGP – Border Gateway Protocol:
- Full IPv4/IPv6 support with route-maps, prefix-lists, communities
- Route Reflector, Confederation, Add-Path, Route Refresh
- BGP-LU for MPLS/SRv6 integration
- BGP EVPN and SR-TE extensions
- RPKI for route origin validation
OSPF / IS-IS:
- Dynamic IGP support for underlay routing
- SRv6 SID advertisement via IGP extensions
RIP, RIPNG
Static Routing with route distance, and route tagging
Route Redistribution
Policy Based Routing
Full VRF Support
VRR (Vritula Routing Redundnacy Protocol)
Multicast routing with PIMv2 sparse-mode and PIMv2 dense-mode, MSDP
IGMP v1-v2-v3, IGMP snooping, IGMP Proxy
MPLS Support
- Native MPLS Forwarding
- Support for LDP for label Distribution
Multihoming and Failover:
- BGP multipath, BFD fast detection, graceful restart

QoS

Traffic classification based on source IP, destination IP, protocols (UDP, ICMP,TCP, etc.) and ports, and their combinations, on application recognition, on IP Precedence and DSCP
DiffServ
Remarking of IP Precedence, DSCP and CoS
Shaping with guaranteed bandwidth allocation and redistribution of excess bandwidth
Committed Access Rate and Multicast rate limit
Traffic prioritisation mechanisms, definition of an arbitrary number of priority classes
IEEE 802.3ad link aggregation

VPN and Tunnelling

IPSec VPN (site-to-site and remote-access):
- Supports IKEv1/IKEv2
- Policy-based and route-based IPSec
GRE / GRE over IPsec:
- Simple L3 tunneling or secure encapsulation.
- NHRP (Next Hop Resolution Protocol) for DMVPN Architecture
L2TP / L2TPv3:
- Layer 2 VPN over IP
  - Optional pseudowire emulation with static or dynamic control
OpenVPN Support client and server

Security

Access Control Lists (ACLs):
- IPv4/IPv6 L2-L4 filtering with permit/deny actions.
- Applied on ingress/egress per interface or globally.
Stateful Firewall:
- Connection tracking with session-based filtering.
- Inspection of TCP/UDP/ICMP flows with dynamic port handling.
- Protection against SYN floods and malformed packets.
NAT / PAT Support:
- Source NAT, Destination NAT, Port Address Translation.
- Useful for IPv4-to-IPv6 interworking and traffic isolation.
802.1x
- Access port authentication using EAP with RADIUS backend

Services

DHCP client, DHCP server with anti-spoofing functions, DHCP relay
Intelligent DNS Proxy, local and remote
Traceroute
NTP Client and Server support
DynDNS

VoIP

Compliant with SIP standards: RFC 2327 SDP, RFC 2617, RFC 3261 SIP, RFC 2833, RFC 2976, RFC 3262, RFC 3264, RFC 3265, RFC 3311, RFC 3323, RFC 3325, RFC 3326, RFC 3398, RFC 3578, RFC 3842, RFC 3960, RFC 4566
OOB DTMF, in-band and announcement tones
Codec support and negotiation
Fax support T.38

Management and configuration

SNMPv2, SNMPv3
Netflow
Telnet server with multiple simultaneous sessions
SSH server with multiple simultaneous sessions (SSHv2)
Fault management Syslog /Trap
Radius Support, TACACS+
Netconf and YANG Models
Tracking for backup management, scheduled commands and events
Software update via TFTP, FTP, sFTP, HTTP, HTTPS, SCP
Configuration via Command Line Interface (CLI), Text/Menu oriented and Telnet
TNA (Tiesse Network Architecture) suite for self-provisioning and automated remote management
Management of an unlimited number of configurations
