Imola LX 5272-20

IAD VoIP, eVDSL and 4G router

Imola LX 5272-20 is a high-performance router/IAD designed for professional eVDSL networks, analogue voice connections for up to 2 calls, plus a mobile radio connection up to 4G.

Ideal for businesses and commercial establishments that require reliability and advanced data and voice traffic management.

Imola LX 5272-20 offers advanced QoS (Quality of Service), security and routing functions.

Key factors

Always-On

Stable connections, wherever they are, with multiple links, transparent backup, and quality of service for uninterrupted business.

Certified

Validated for inclusion in business offering profiles and use within the networks of major telecom operators.

Power Efficiency

Minimizes energy consumption, reduces environmental impact, and lowers operational costs.

Preconfigured

Factory pre-configured and ready to use, reducing installation time, errors, and enabling immediate deployment.

Robust

Designed to be durable and operate long-term, even in industrial and challenging environments.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

ZTP

Zero Touch Provisioning facilitates remote management and agile configuration of the installed base.

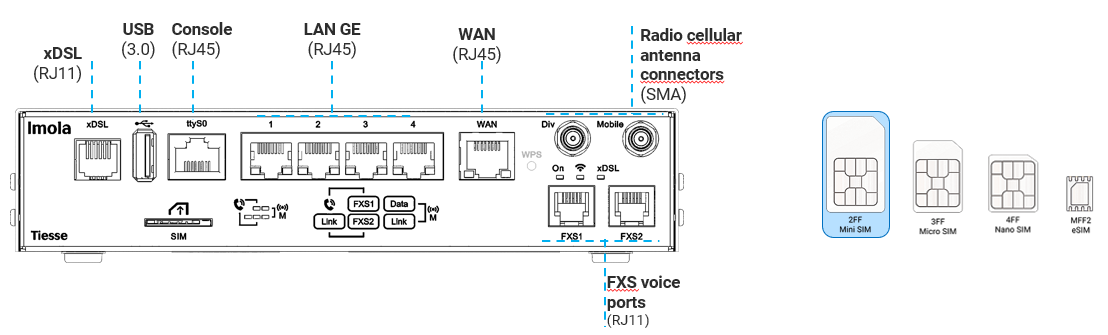

LAN	GE	4	10/100/1000 Ethernet ports
WAN	GE-WAN	1	WAN ethernet ports (label WAN)
WAN	ADSL 2/2+ VDSL2 eVDSL	1	Port with RJ11 connector, full rate ADSL 2/2+/VDSL2 ADSL2/2+ Downstream data rate up to 24 Mbps and upstream data rate up to 3.5 Mbps Compliant with Standard G.992.1 annex A, B, C & I, G.992.2-g.Lite, G.992.3 annex A, B, I, J, M, G.992.4-g.Lite.bis, G.992.5 annex A, B, C, I, J, M, ANSI T1.413 issue2, ETSI TS 388 ADSL-over-ISDN, ITU T-I361, ITU T-I.363.5, ITU T-I.432, ITU T-I610, ITU T-I731 VDSL2 Support for all VDSL2 profiles: 8 MHz up to 30 MHz ITU-T G993.2 Compliant with G.Vector standard (ITU-T G.993.5) Compliant with ITU-T G.998.4 G.INP standard Compatible with ADSL2 (backward compatibility) eVDSL2 Support for all VDSL2 profiles: 8 MHz up to 35 MHz, in compliance with ITU-T G993.2 Annex Q (35b or Vplus profiles), capable of aggregate rates of up to 400Mbps G.Vector support (ITU-T G.993.5) Compliant with ITU-T G.998.4 G.INP standard (impulse noise protection) Compatible with ADSL2 (backward compatibility) Excellent connection stability in case of line disturbances
RADIO CELLULAR	GSM / GPRS / EDGE	1	Frequency bands: 900 / 1800 / 1900 MHz GPRS multislot 10 - EDGE multislot 12
	UMTS / HSDPA / HSUPA / HSPA+		WCDMA frequency bands: 900 / 2100 Mhz HSDPA data transmission speed up to category 20 HSUPA data transmission speed up to category 6 HSPA+ data rate: 21.1 Mbps in Downlink and 5.7 in Uplink Dual Carrier HSPA mode support
	DC-HSPA+		42 Mbps in download
	LTE		Possibility to configure and activate two APNs simultaneously Frequency bands: 800 / 900 / 1800 / 2100 / 2600 MHz Data transmission speed: category 4, MIMO LTE data rate: 150 Mbps in Downlink and 50 Mbps in Uplink
	Antennas	2	2 removable antennas, SMA male connector, front of product Multiple Input/Multiple Output (MIMO) support Outdoor antennas (omnidirectional and directional), high gain and vandal-proof antennas also available (optional)
	SIM	1	SIM slot for mini-SIM card (2FF) accessible from the outside of the product
VOCE	Porte FXS	2	RJ11 connector
CONSOLE		1	RJ45 connector
USB		1	USB 3.0

Nota: le funzionalità possono dipendere dalla versione e dal livello di aggiornamento del firmware del prodotto.

NETWORKING

TCP-UDP IPv4
IPv6

LAYER 2

LAN Bridging
VLAN on802.1q LAN interfaces in Access mode, Trunk, native VLAN and Hybrid mode
Layer 2 Protocol Tunneling (L2PT)
802.1Q-in-802-1Q

ROUTING & MULTICAST

Static, Policy routing, RIPv1, RIPv2
BGP-4, BGP-4+
OSPFv2
VRF Lite, Routing redistribution and tagging
IEEE 802.1d (Spanning Tree Protocol)
VRRP (Virtual Routing Redundancy Protocol) with IPv4-IPv6 authentication
IGMP v1-v2-v3, IGMP snooping, IGMP proxying
Multicast routing with PIMv2 sparse-mode and PIMv2 dense-mode, MSDP

QoS

Traffic classification based on source IP, destination IP, protocols (UDP, ICMP, TCP, etc.) and ports, and their combinations, on application recognition, on IP Precedence and DSCP
DiffServ
CoS on VLAN
QoS on ATM classes
Shaping with guaranteed allocated bandwidth and redistribution of excess bandwidth
Committed Access Rate and Multicast rate limit
Traffic prioritisation mechanisms, definition of an arbitrary number of priority classes
IEEE 802.3ad link aggregation

SECURITY

NAT/PAT
ACLs, Stateful Firewall
SSL Tunnelling
L2TP
GRE Tunnelling with keep alive and key sequence numbering (cellular network optimisation)
VPN with IPSEC/ESP or IPSEC/AH IKEv1/IKEv2
3 DES Encryption

SERVICES

DHCP client, DHCP server with anti-spoofing functions, DHCP Layer Discovery Protocol IEEE 802.1ab, DHCP relay
Intelligent DNS Proxy, local and remote
Traceroute
NTP Client and Server Support
Easy VPN

MANAGEMENT & CONFIGURATION

SNMP v1, SNMPv2, SNMPv3
Telnet server with multiple simultaneous sessions
SSH server with multiple simultaneous sessions (SSHv2)
Netflow
IP SLA support for: One-way delay, round trip delay, jitter, packet loss
Syslog /Trap fault management
Radius, TACACS+ support
Tracking for management of backups, commands and scheduled events
Software update via TFTP, FTP, sFTP, HTTP, HTTPS, SCP
Configuration via Command Line Interface (CLI), Text/Menu oriented and Telnet
TNA (Tiesse Network Architecture) suite for self-provisioning and automated remote management
Management of an unlimited number of configurations

VOICE

IP line calling functionality (VoIP)
Modem calling functionality via mobile phone network
Compliant with SIP standards: RFC 2327 SDP, RFC 2617 , RFC 3261 SIP, RFC 2833, RFC 2976, RFC 3262, RFC 3264, RFC 3265, RFC 3311, RFC 3323 ,RFC 3325, RFC 3326, RFC 3398, RFC 3578, RFC 3842, RFC 3960, RFC 4566
SIP registration, SIP UAC, registration cancellation
Codec support and negotiation
OOB DTMF tone management, in-band and announcement tones
Unconditional call forwarding, call waiting functionality
T.38 fax support
Interoperability with PBX
Line hunting
