Imola LX 5572-IKW

Ultra broadband eVDSL - Wi-Fi - 5G router

Imola LX 5572-IKW is an advanced all-in-one router designed for FTTC, FTTH (via external ONT) and integrated 5G connectivity.
It is specifically engineered for business applications that require high security standards, superior network performance, and service continuity.

Its compact form factor allows for easy installation in any environment, while its energy-efficient design helps reduce operational costs.
With Imola LX 5272-IKW, businesses can ensure reliable and secure connectivity, effectively supporting their communication and data management needs.

Key factors

Always-On

Stable connections, wherever they are, with multiple links, transparent backup, and quality of service for uninterrupted business.

Certified

Validated for inclusion in business offering profiles and use within the networks of major telecom operators.

Power Efficiency

Minimizes energy consumption, reduces environmental impact, and lowers operational costs.

Preconfigured

Factory pre-configured and ready to use, reducing installation time, errors, and enabling immediate deployment.

Robust

Designed to be durable and operate long-term, even in industrial and challenging environments.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

LAN	GE	4	10/100/1000 Mbps
LAN	Wi-Fi	1	802.11 b/g/n (2.4 GHz) 2x2 Internal antennas
WAN	Ge-WAN	1	10/100/1000 Mbps (label WAN)
	xDSL	1	Full rate ADSL2/2+ / eVDSL
	ADSL 2/2+		Downstream data rate up to 24 Mbps and upstream data rate up to 3.5 Mbps Compliant with Standard G.992.1 annex A, B, C & I, G.992.2-g.Lite, G.992.3 annex A, B, I, J, M, G.992.4-g.Lite.bis, G.992.5 annex A, B, C, I, J, M, ANSI T1.413 issue2, ETSI TS 388 ADSL-over-ISDN, ITU T-I361, ITU T-I.363.5, ITU T-I.432, ITU T-I610, ITU T-I731
	VDSL2		Support for all VDSL2 profiles: 8 MHz up to 30 MHz ITU-T G993.2 Compliant with G.Vector standard (ITU-T G.993.5) Compliant with ITU-T G.998.4 G.INP standard Compatible with ADSL2 (backward compatibility)
	eVDSL		Support for all VDSL2 profiles: 8 MHz up to 35 MHz, in compliance with ITU-T G993.2 Annex Q (35b or Vplus profiles), capable of aggregate rates of up to 400Mbps G.Vector support (ITU-T G.993.5) Compliant with ITU-T G.998.4 G.INP standard (impulse noise protection) Compatible with ADSL2 (backward compatibility) Excellent connection stability in case of line disturbances
RADIO CELLULAR	UMTS / HSDPA / HSUPA / HSPA+	1	Frequency band: 900 / 1800 / 1900 MHz GPRS multislot 10 - EDGE multislot 12
	LTE		WCDMA frequency bands: 900 / 2100 Mhz HSDPA data transmission rate up to category 20 HSUPA data rates up to category 6 HSPA+ data rate: 21.1 Mbps in Downlink and 5.7 in Uplink Dual Carrier HSPA mode support
	5G Sub-6 GHz		Support for sub-6 FDD and TDD 5G 5G core network Opt. 3a/3X and Opt 2 Frequencies 1 (FR1): n1, n2, n3, n5, n7, n12, n14, n20, n28, n30, n41, n66, n71, n77, n78, n79 5G throughput: up to 1 Gbps download and upload

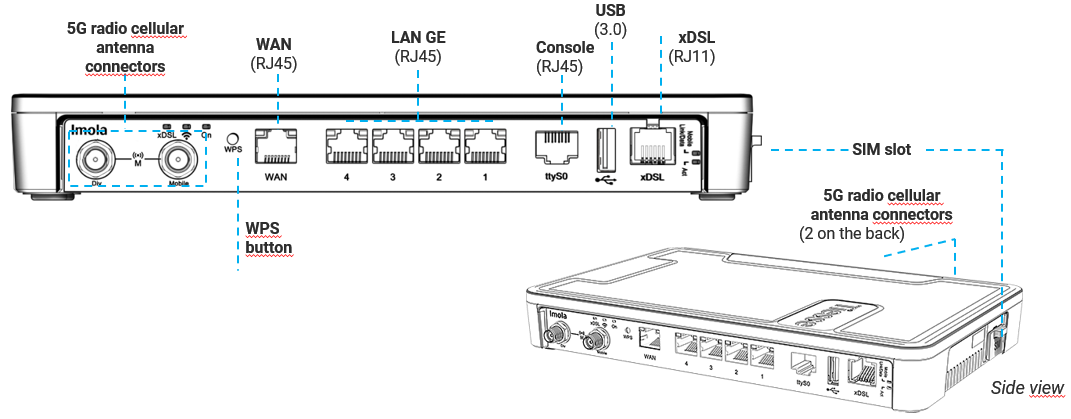

	ANTENNE	4	4 removable antennas, male SMA connector, 2 on the front and 2 on the back of the product Multiple Input/Multiple Output (MIMO) support Outdoor version antennas (omni-directional and directional), high-gain and vandal-proof (optional) also available
	SIM	1	1 SIM slot for mini SIM card 2FF – external access

Nota: le funzionalità possono dipendere dalla versione e dal livello di aggiornamento del firmware del prodotto.

NETWORKING	‐TCP-UDP IPv4 ‐IPv6
LAYER 2	‐LAN Bridging ‐VLAN su interfacce LAN on802.1q in Access mode, Trunk, nativo VLAN e Hybrid mode ‐Layer 2 Protocol Tunneling (L2PT) ‐802.1Q-in-802-1Q
ROUTING & MULTICAST	‐Static, Policy routing, RIPv1, RIPv2 ‐BGP-4, BGP-4+ ‐OSPFv2 ‐VRF Lite, Routing redistribution e tagging ‐IEEE 802.1d (Spanning Tree Protocol) ‐VRRP (Virtual Routing Redundancy Protocol) con autenticazione IPv4-IPv6 ‐IGMP v1-v2-v3, IGMP snooping, IGMP proxying ‐Multicast routing con PIMv2 sparse-mode e PIMv2 dense-mode, MSDP
QoS	‐Classificazione del traffico basato su IP sorgente, IP destinazione, protocolli (UDP, ICMP,TCP, ecc) e porte, e loro combinazioni, sul riconoscimento di applicazioni, su IP Precedence e DSCP ‐DiffServ ‐Remarking of IP Precedence, DSCP and CoS ‐QoS su classi ATM ‐Shaping con banda allocata garantita e ridistribuzione della banda in eccesso ‐Committed Access Rate e Multicast rate limit ‐Meccanismi di priorizzazione del traffico, definizione di un numero arbitrario di classi di priorità ‐IEEE 802.3ad link aggregation
SICUREZZA	‐NAT/PAT ‐ACLs, Stateful Firewall ‐SSL Tunnelling ‐L2TP ‐GRE Tunnelling con keep alive e key sequence numbering (ottimizzazione delle rete cellulare) ‐VPN con IPSEC/ESP o IPSEC/AH IKEv1/IKEv2 ‐3 DES Encryption
SERVIZI	‐DHCP client, DHCP server con funzioni di antispoofing, DHCP Layer Discovery Protocol IEEE 802.1ab, DHCP relay ‐Intelligent DNS Proxy, locale e remoto ‐Traceroute ‐NTP Client e supporto Server ‐Easy VPN ‐DDns
GESTIONE e CONFIGURAZIONE	‐SNMP v1, SNMPv2, SNMPv3 ‐Telnet server con sessioni multiple simultanee ‐SSH server con sessioni multiple simultanee (SSHv2) ‐Netflow ‐Supporto IP SLA per: One Way Delay, Round Trip Delay, Jitter, Packet Loss ‐SAA (Service Assurance Agent) ‐Fault management Syslog /Trap ‐Radius Support, TACACS+ ‐Tracking per backup management, comandi ed eventi schedulati ‐Aggiornamento software via TFTP, FTP, sFTP, HTTP, HTTPS, SCP ‐Configurazione mediante command Line Interface (CLI), Text/Menu oriented e Telnet ‐TNA (Tiesse Network Architecture) suite per auto-provisioning e gestione automatizzata remota ‐Gestione di un numero illimitato di configurazioni
