Imola LX 5596-20

Indoor router – Fiber – xDSL – Wi-Fi 6 - 5G - VoIP

Imola LX 5596-20 is a latest-generation all-in-one router capable of reaching speeds of up to 10 Gbit/s on wired networks and 5G on cellular radio networks.

It also has two FXS ports for VoIP calls.

Thanks to Wi-Fi AX3600 technology, it guarantees high performance even on wireless LAN networks.

Designed to fully exploit the potential of Gigabit networks, it is the ideal solution for data-intensive applications and speed requirements.

All its features make it perfect for businesses, commercial establishments and public administrations that require reliability, operational efficiency and advanced data traffic management.

Key factors

All-In-One

Adaptable to any technology, including FTTC, FTTH, FWA, 4G/5G, in a single device for reliable, versatile, and scalable connectivity.

Always-On

Stable connections, wherever they are, with multiple links, transparent backup, and quality of service for uninterrupted business.

Preconfigured

Factory pre-configured and ready to use, reducing installation time, errors, and enabling immediate deployment.

Secure By Design

Built with security in mind from the design stage, ensuring robust and secure solutions.

Smart Value

Maximizes business value with an excellent performance-to-price ratio.

ZTP

Zero Touch Provisioning facilitates remote management and agile configuration of the installed base.

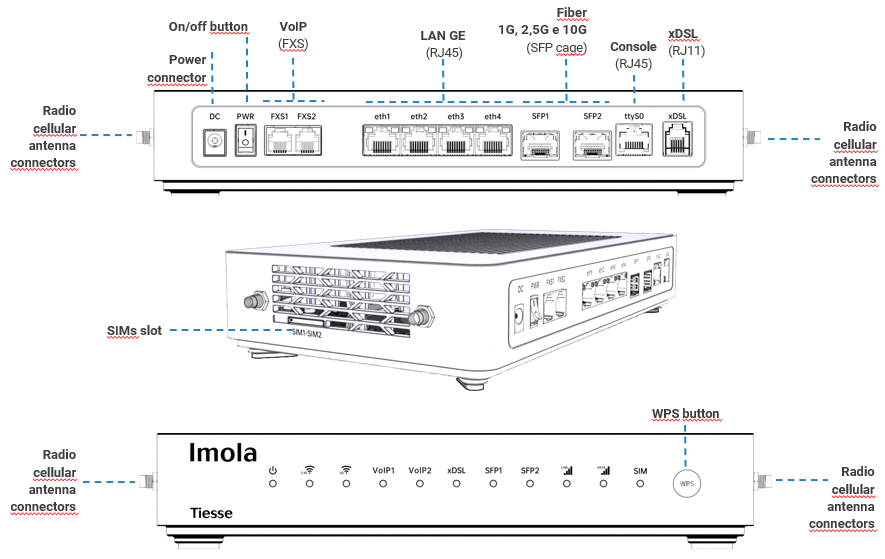

Port	N°	Description	Details
LAN / WAN	4	GE	10/100/1000 Mbps ports
LAN / WAN	2	SFP/SFP+	1G / 2.5 / 10 Gbit ports, via SFP/SFP+ cages (transceiver module not included)
Wi-Fi	1	RF	IEEE 802.11ax, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a
		Bands	2.4 GHz and 5 GHz simultaneous
		Antennas	Internal antennas, MIMO 4x4
ADSL2/2+ VDSL2 eVDSL	1	ADSL2/2+	Downstream data rates up to 24 Mbps - Upstream data rates up to 3.5 Mbps Compliant with Standard G.992.1 annex A,B,C&I, G.992.2-g.Lite, G.992 .3 annex A, B, I, J, M, G.992 .4-g.Lite.bis, G.992.5 annex A, B, C, I, J, M, ANSI T1.413 issue2, ETSI TS 388 ADSL-over-ISDN, ITU T-I361, ITU T-I.363.5, ITU T-I.432, ITU T-I610, ITU T-I731
		VDSL2	Support for all VDSL2 profiles: 8 MHz up to 30 MHz ITU-T G993.2 Compliant with G.Vector standard (ITU-T G.993.5) Compliant with ITU-T G.998.4 G.INP standard Compatible with ADSL2 (backward compatibility)
		eVDSL	35 MHz ITU-T G993.2 Annex Q profile support (35b or Vplus profiles) with aggregate rates up to 400Mbps
RADIO CELLULAR	1	WCDMA	Frequencies: B1, B5, B8 Throughput: Max. 42 (DL)/Max. 5.76 (UL)
		LTE	Frequencies: LTE-FDD: B1/3/5/7/8/20/28 - LTE-TDD: B38/40/41/42/43 Throughput: LTE-FDD: Max. 1.6 Gbps (DL) / Max. 211 Mbps (UL) (*)
		5G Sub-6 GHz	5G NR frequencies: n1/3/5/7/8/20/28/38/40/41/77/78 Throughput: 5G SA Sub-6: Max. 4.67 Gbps (DL)/Max. 1.25 Gbps (UL) () 5G NSA Sub-6:* Max. 3.74 Gbps (DL)/Max. 1.46 Gbps (UL) (*)
	2	SIM	2 Nano SIM Slots (Dual SIM Single ACTIVE) SIM insertion type: tray eject
	4	Antennas	4 external, removable antennas, male SMA connector MIMO: DL 4x4 – UL 2x2
Voice	2	FXS	2 VoIP ports

Note: the following list is purely indicative, active features depend on version and software update (NOS).

NETWORKING	IPv4 / IPv6 Dual Stack advanced forwarding, filtering, and dual-stack policies VXLAN (RFC 7348): L2 over IP/UDP with per-tenant VNI encapsulation SRv6 Native SID Support: Implements End, End.X, End.DT6, End.B6 behaviors Integrated with BGP SR Policy for flexible traffic engineering High Availability: ECMP, VRRP, BFD, fast convergence via EVPN multihoming
LAYER 2	IEEE 802.1Q VLANs: iTagged VLAN support with configurable trunks and access ports Ethernet Bridging: hardware/software bridge domains with MAC learning and filtering Layer 2 protocol Tunneling (L2TP) 802.1Q-in-802.1Q EVPN (RFC 7432): L2/L3 VPN overlay over IP/MPLS MAC/IP route advertisement (Type-2), IP Prefix routes (Type-5) Ethernet Segment Identifier (ESI) for multihoming and redundancy Spanning Tree Protocols (optional): support for RSTP/MSTP VXLAN + EVPN Integration: EVPN as the control plane for VXLAN overlays Seamless tenant segmentation and MAC mobility
ROUTING & MULTICAST	BGP – Border Gateway Protocol: Full IPv4/IPv6 support with route-maps, prefix-lists, communities Route Reflector, Confederation, Add-Path, Route Refresh BGP-LU for MPLS/SRv6 integration BGP EVPN and SR-TE extensions RPKI for route origin validation OSPF / IS-IS: Dynamic IGP support for underlay routing SRv6 SID advertisement via IGP extensions RIP, RIPNG Static Routing with route distance, and route tagging Route Redistribution Policy Based Routing Full VRF Support VRR (Virtual Routing Redundnacy Protocol) Multicast routing with PIMv2 sparse-mode and PIMv2 dense-mode, MSDP IGMP v1-v2-v3, IGMP snooping, IGMP Proxy MPLS Support Native MPLS Forwarding ‐Support for LDP for label Distribution Multihoming and Failover: BGP multipath, BFD fast detection, graceful restart
QoS	Traffic classification based on source IP, destination IP, protocols (UDP, ICMP,TCP, etc.) and ports, and their combinations, on application recognition, on IP Precedence and DSCP DiffServ Remarking of IP Precedence, DSCP and CoS Shaping with guaranteed bandwidth allocation and redistribution of excess bandwidth Committed Access Rate and Multicast rate limit Traffic prioritisation mechanisms, definition of an arbitrary number of priority classes IEEE 802.3ad link aggregation
VPN and TUNNELLING	IPSec VPN (site-to-site and remote-access): Support of IKEv1/IKEv2 Policy-based and route-based IPSec GRE / GRE over IPsec: Simple L3 tunneling or secure encapsulation. NHRP (Next Hop Resolution Protocol) for DMVPN Architecture L2TP / L2TPv3: Layer 2 VPN over IP Optional pseudowire emulation with static or dynamic control OpenVPN Support client and server
SECURITY	Access Control Lists (ACLs): IPv4/IPv6 L2-L4 filtering with permit/deny actions Applied on ingress/egress per interface or globally Stateful Firewall: Connection tracking with session-based filtering Inspection of TCP/UDP/ICMP flows with dynamic port handling Protection against SYN floods and malformed packets NAT / PAT Support: Source NAT, Destination NAT, Port Address Translation Useful for IPv4-to-IPv6 interworking and traffic isolation 802.1x Access port authentication using EAP with RADIUS backend
SERVICES	DHCP client, DHCP server with anti-spoofing functions, DHCP relay Intelligent DNS Proxy, local and remote Traceroute NTP Client and Server support DynDNS
VoIP	Compliant with SIP standards: RFC 2327 SDP, RFC 2617, RFC 3261 SIP, RFC 2833, RFC 2976, RFC 3262, RFC 3264, RFC 3265, RFC 3311, RFC 3323, RFC 3325, RFC 3326, RFC 3398, RFC 3578, RFC 3842, RFC 3960, RFC 4566 OOB DTMF tone, in-band and announcement tone handling Codec support and negotiation T.38 fax support
MANAGEMENT and CONFIGURATION	SNMPv2, SNMPv3 Netflow Telnet server with multiple simultaneous sessions SSH server with multiple simultaneous sessions (SSHv2) Fault management Syslog /Trap Radius Support, TACACS+ Netconf and YANG Models Tracking for backup management, scheduled commands and events Software update via TFTP, FTP, sFTP, HTTP, HTTPS, SCP Configuration via Command Line Interface (CLI), Text/Menu oriented and Telnet TNA (Tiesse Network Architecture) suite for self-provisioning and automated remote management Management of an unlimited number of configurations
